PCB Assembly

Component Kitting, PCB Assembly (Prototyping and Production), Board Inspection, (BGA) Rework

PROTOTYPING builds welcomed with no minimum order quantity.

EXPERIENCED team ensure that your product is manufactured efficient without compromising on quality.

ADVICE provided when designs are overlycomplex and where efficiencies can be introduced to reduce the cost of manufacture and / or improve turnaournd times.

QUALITY is paramount. We hold BSi accressidation to ISO 9001 scoped to include all our design and manufacturing processes.

Sophie Turner profile picture

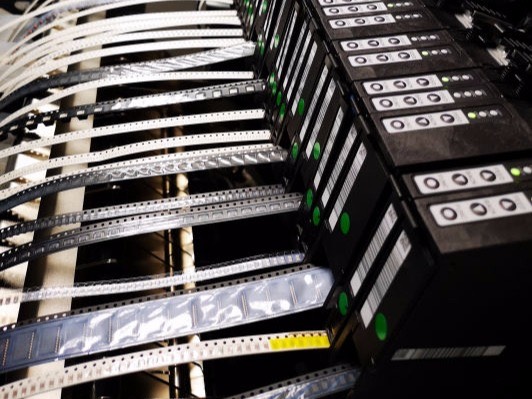

Component Kitting

We can process components free-issued by customers or source components according to your Bill of Materials from our trusted suppliers. We can also adivse alternatives which may be more cost-effective or have better availability.

Sophie Turner profile picture

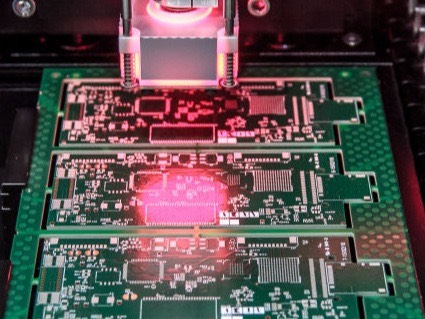

Assembly

Our investment in state-of-the-art equipment allows us to efficiently assemble your PCBs whether for a small prototype run or a larger production batch.

Sophie Turner profile picture

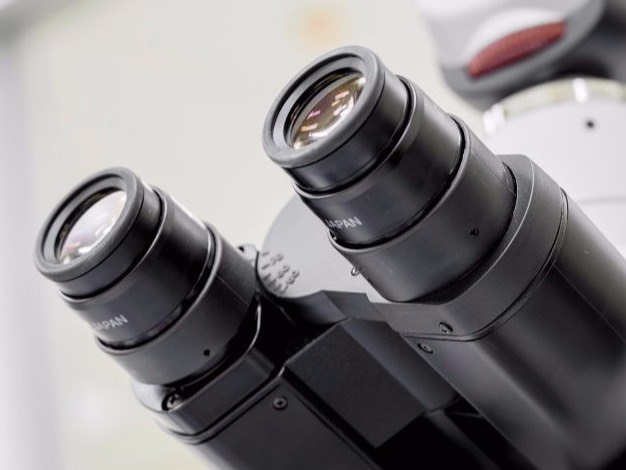

Inspection and Test

All assembled boards are inspected by in-house IPC certified inspectors. We pride ourselves on achieving high-quality output but are constantly looking at ways to improve further. Currently we hold JEDEC 001 accreditation.

Sophie Turner profile picture

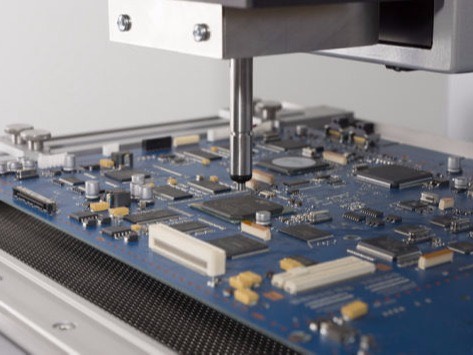

Rework

HGL invested in an Ersa HR 550 System with desoldering, placement and soldering capabilities for all types of surface mounted devices up to 70 x 70mm including BGA devices.

Equipment

TWS SR2700 Semi-Automatic Screen Printer

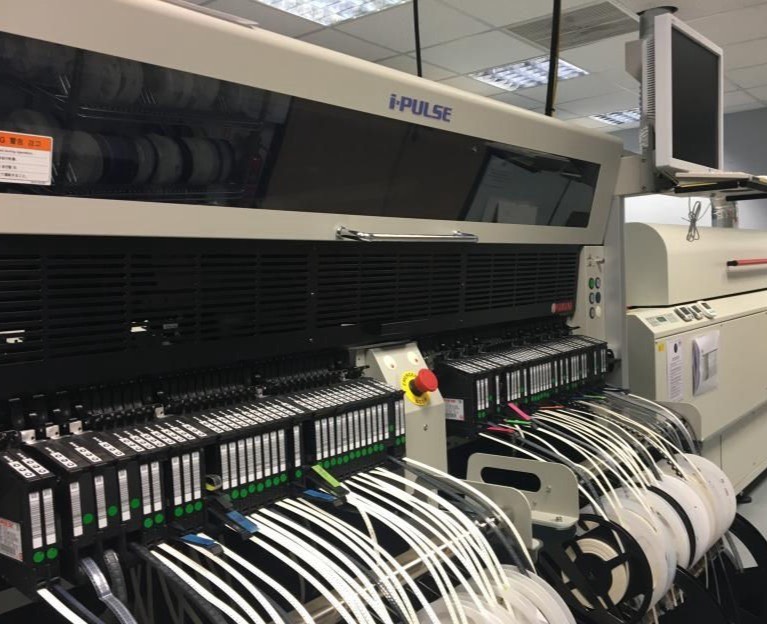

Yamaha M20 Pick & Place (2)

Essemtec R0400FC Convection Reflow Oven

Ersa HR 550 BGA Rework Station

MEK Spector AOI System

Process Capabilities

Minimum Component Size: 0201

Maximum PCB Size: 420mm x 335mm

Board Thickness: 0.4mm to 4.8mm

Placement Accuracy: 40um

Placements per Hour: ~23,000
