Dragonfly 8-DIN
HGL Systems was approached to design a modified Dragonfly 8 module which could be mounted on Industril DIN rails but which could still be used to create larger channel count systems if required. These modules are now in use worldwide on Industrial Gas Turbines providing a Condition Monitoring service together with a DIN rail mounting version of the HGL Dynamics VESA PC.
Design

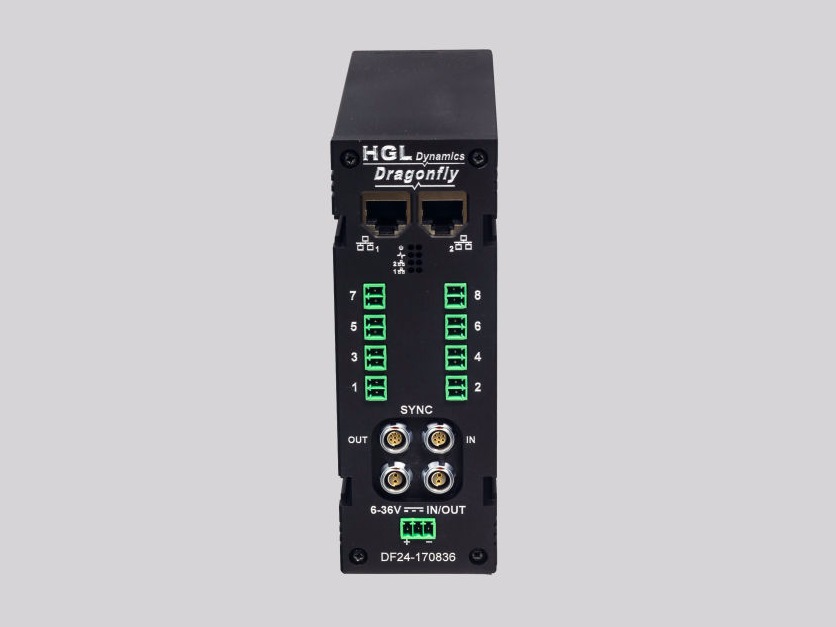

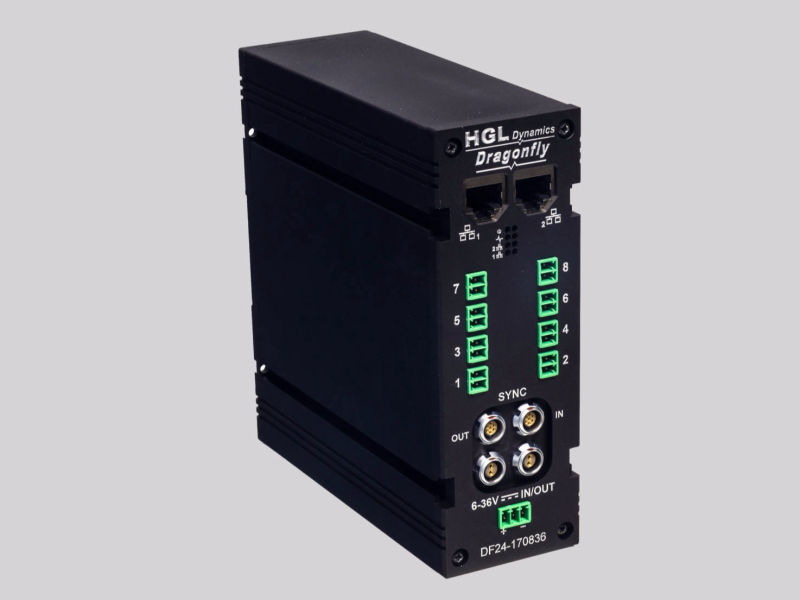

Designed so all features and connections are exposed at the front plate therefore allowing the unit to be mounted to an industry standard DIN rail.
Metalwork

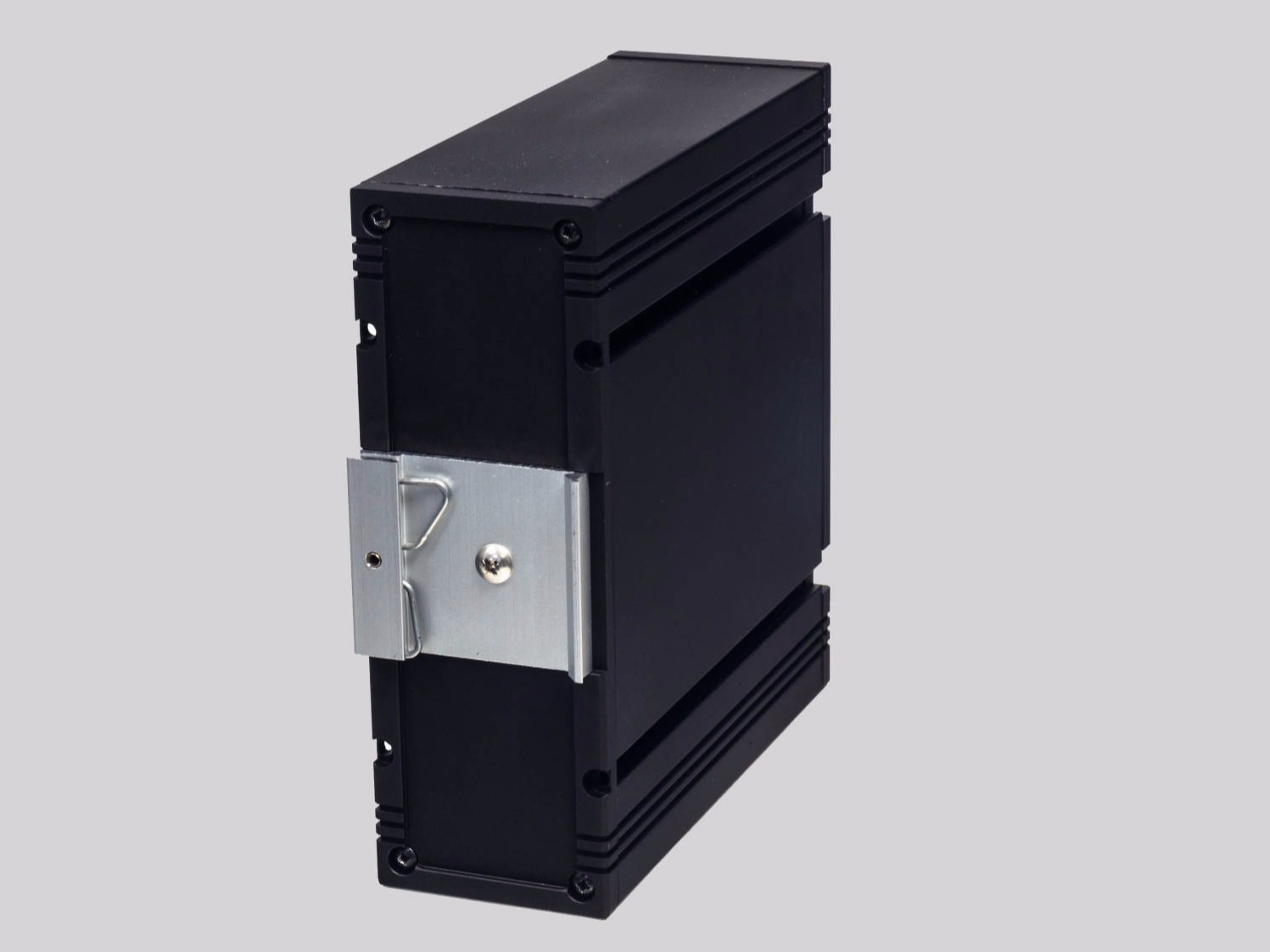

Extruded anodised aluminium enclosure with T-bar slots to allow multiple units to interlock.

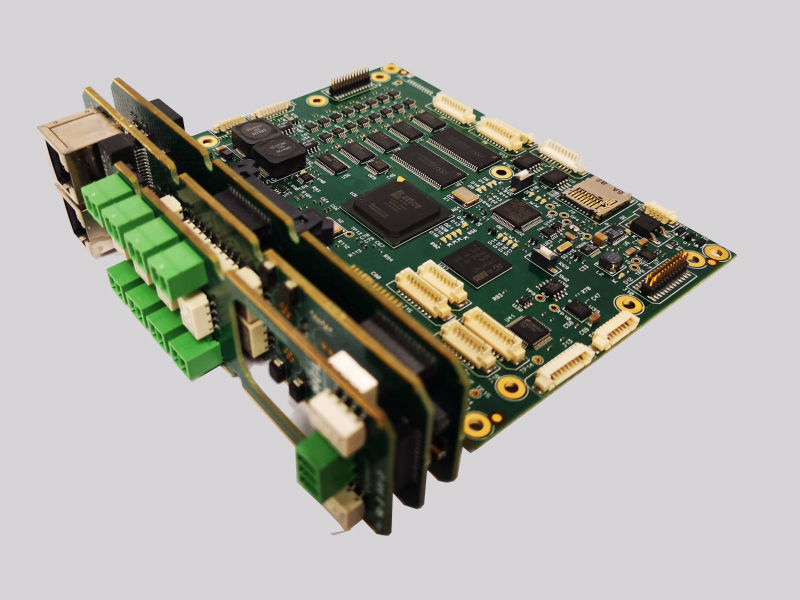

Electronics
Supports multimodule synchronisation to create a system with a massive channel count whilst maintaining integrity of data against a common timebase.
